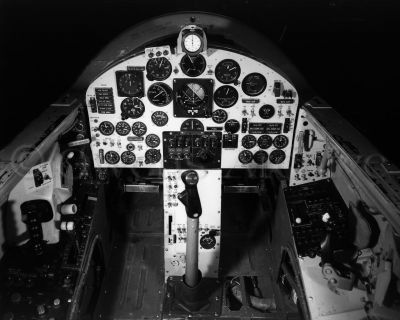

 This photo shows the X-15 cockpit and was unique for many reasons, including the fact that it had two types of controls for the pilot.

 For flight in the dense air of the usable atmosphere, the X-15 used conventional aerodynamic controls such as rudder surfaces on the vertical stabilizers to control yaw and movable horizontal stabilizers to control pitch when moving in synchronization or roll when moved differentially.

 For flight in the thin air outside of the appreciable Earth's atmosphere, the X-15 used a reaction control system. Hydrogen peroxide thrust rockets located on the nose of the aircraft provided pitch and yaw control. Those on the wing provided roll control.

The conventional aerodynamic controls used a stick, located in the middle of the floor, and pedals. The reaction control system used a side arm controller, seen in this photo on the left.
